Looking to boost your home’s security quickly and easily? Installing a Weiser deadbolt might be the perfect solution for you.
Whether you’re new to DIY projects or just want a straightforward way to protect your space, this guide will walk you through every step. By the time you finish reading, you’ll have the confidence and knowledge to install your deadbolt right the first time.
Ready to take control of your home’s safety? Let’s get started!

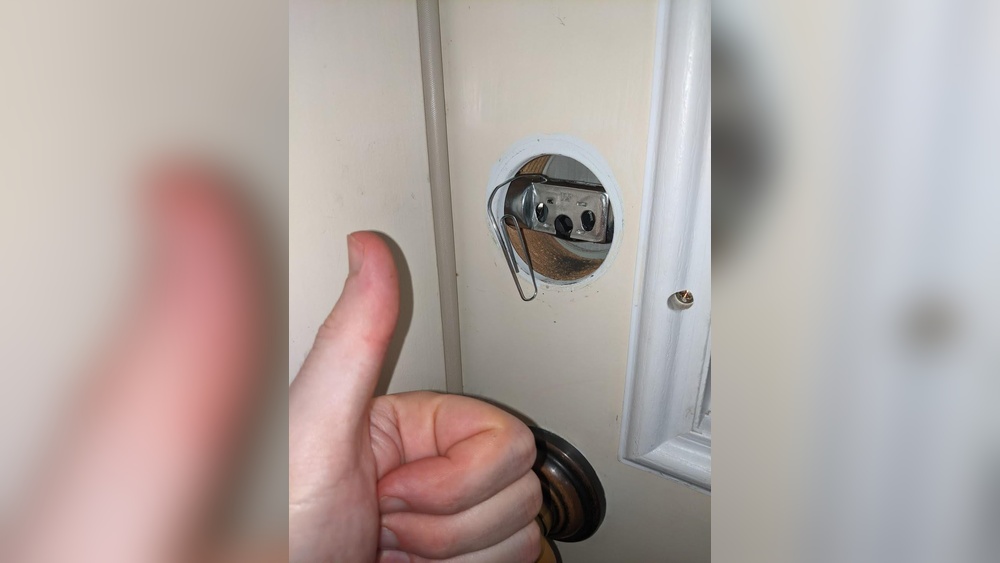

Credit: www.youtube.com
Tools And Materials Needed
Installing a Weiser deadbolt is a simple task with the right tools and materials. Having everything ready saves time and avoids frustration. Prepare your workspace and gather all items before starting.
Basic Tools Required
Start with a screwdriver. A Phillips head works best for most screws. A drill is useful to make new holes or widen existing ones. Use a drill bit that matches the screw size. A tape measure helps to place the lock accurately. A pencil marks the spots for drilling. A hammer may be needed to adjust the door or frame.
Materials Needed
Include the Weiser deadbolt lock set. It comes with the lock, strike plate, and screws. Use wood filler for fixing any old holes. Sandpaper smooths rough edges after drilling. Keep a level handy to ensure the lock is straight. Extra screws are good to have just in case.
Safety Gear
Wear safety glasses to protect your eyes from dust and debris. Gloves can protect your hands from sharp edges. Work in a well-lit area to avoid mistakes. Clear the work area from clutter to move freely.
Preparing The Door
Preparing the door is the first step to install a Weiser deadbolt. This step makes sure the lock fits well and works properly. Take your time. Accurate preparation helps avoid problems later.
Follow the instructions carefully. Use the right tools and materials. Let’s explore the key tasks: measuring, marking, and drilling holes.
Measuring And Marking
Start by measuring the door thickness. Most deadbolts fit doors 1 3/8 to 1 3/4 inches thick. Use a tape measure for accuracy. Mark the correct height for the deadbolt. It is usually 6 to 12 inches above the doorknob.
Next, mark the hole positions. Use the template that comes with the lock. Hold it against the door edge and face. Mark the center points for the holes with a pencil. Double-check the marks before drilling.
Drilling Holes
Choose the right drill bits. Usually, a 2 1/8-inch hole saw is needed for the main hole. Use a 1-inch spade bit for the edge hole. Drill slowly and straight. Keep the drill steady to avoid splintering the wood.
Start with the face of the door. Drill through the marked center point. Then drill the edge hole for the latch. Clean any wood chips or dust. Smooth the edges with sandpaper to help the lock fit better.
Installing The Deadbolt Mechanism
Installing the deadbolt mechanism is a key step in securing your door. This process involves fitting the exterior and interior parts of the lock. Each part must align perfectly for smooth operation. Follow these steps carefully to install your Weiser deadbolt correctly.
Fitting The Exterior Assembly
Start by placing the exterior assembly on the outside of the door. Align the spindle through the hole in the door. Make sure the keypad or keyhole faces outward. Check that the tailpiece fits through the latch mechanism inside the door. Hold the assembly steady to avoid misalignment.
Attaching The Interior Assembly
Next, position the interior assembly on the inside of the door. Guide the spindle into the matching hole. Align the screw holes on both assemblies. Use the provided screws to secure the interior and exterior parts together. Tighten screws evenly to keep the lock snug and stable.
Securing The Strike Plate
Securing the strike plate is a key step in installing a Weiser deadbolt. The strike plate is the metal piece fixed to the door frame. It catches the deadbolt when the door locks. A strong strike plate keeps your door secure and prevents forced entry.
Proper placement and fastening of the strike plate improve the deadbolt’s strength. It also helps the door close smoothly. Using the right tools and screws makes the strike plate more durable.
Choose The Right Strike Plate
Select a heavy-duty strike plate made for deadbolts. Thin or light plates can bend or break easily. A good strike plate spreads the force of a door kick over a larger area. This reduces damage to the door frame.
Align The Strike Plate Correctly
Place the strike plate so the deadbolt fits perfectly into the hole. Misalignment can cause the bolt to stick or not lock fully. Use a pencil to mark the hole position on the door frame. Check the bolt’s path before fixing the plate.
Use Long Screws For Extra Security
Standard screws are too short to hold the strike plate firmly. Replace them with 3-inch screws. These screws reach the wall studs behind the door frame. This adds strength and prevents the plate from pulling loose.
Secure The Strike Plate Firmly
Drill pilot holes to avoid splitting the wood. Screw the strike plate tightly but avoid over-tightening. Over-tightening can strip the screws or damage the wood. Check that the plate is flush with the door frame for best results.
Testing The Deadbolt
Testing the deadbolt is a crucial step after installation. It ensures your lock works properly and keeps your home safe. This step helps find any issues before you finish the job. A well-tested deadbolt offers smooth locking and unlocking every time.
Checking Lock Functionality
Start by turning the key in the lock. The deadbolt should slide out and retract easily. Test both sides if your lock has two cylinders. Make sure the key does not stick or feel hard to turn. Try locking and unlocking several times. The bolt should move fully in and out without resistance. If the lock jams or feels tight, it needs adjustment.
Adjusting For Smooth Operation
Check the alignment between the bolt and the strike plate. Misalignment causes sticking or jamming. Loosen the screws on the strike plate slightly. Move it up, down, left, or right to align with the bolt. Tighten the screws and test the lock again. Repeat until the bolt slides smoothly into the strike plate. Lubricate the deadbolt with graphite powder if needed. Avoid oil-based lubricants as they attract dirt.
Credit: device.report
Maintenance Tips
Maintaining your Weiser deadbolt ensures it works smoothly and lasts longer. Regular care prevents problems and keeps your home secure.
Simple steps can protect the lock from damage and wear. A little attention saves money and stress later.
Cleaning The Deadbolt Surface
Wipe the deadbolt with a soft, damp cloth. Remove dust, dirt, and grime gently. Avoid harsh chemicals that can damage the finish.
Lubricating The Lock Mechanism
Use graphite or silicone spray on the keyhole and bolt. Do this twice a year for smooth operation. Avoid oil-based lubricants that attract dust.
Checking For Loose Screws
Inspect screws around the lock regularly. Tighten any loose screws with a screwdriver. Loose parts can cause malfunction or breakage.
Testing The Lock Function
Turn the key and thumb turn often. Notice any sticking or resistance. Early detection helps fix issues before they get worse.
Credit: www.youtube.com
Frequently Asked Questions
How Do I Prepare My Door For A Weiser Deadbolt?
First, remove the old lock and clean the door edge. Ensure the door’s thickness matches Weiser’s specifications. Mark and drill holes precisely as per the installation guide for perfect alignment.
What Tools Are Needed To Install A Weiser Deadbolt?
You need a Phillips screwdriver, a power drill, a tape measure, and a pencil. These tools help in drilling holes and securing screws efficiently and accurately.
How Long Does It Take To Install A Weiser Deadbolt?
Installation usually takes about 20 to 30 minutes. It depends on your experience and door type. Following the instructions carefully speeds up the process.
Can I Install A Weiser Deadbolt Without Professional Help?
Yes, most Weiser deadbolts are designed for easy DIY installation. Clear instructions and included hardware make it simple for homeowners to install without professional help.
Conclusion
Installing a Weiser deadbolt is simple with clear steps. Take your time to follow each instruction carefully. A properly installed lock keeps your home safe and secure. Double-check the alignment before tightening screws for best results. Enjoy the peace of mind that comes with added security.
Small effort brings big safety benefits to your door. Keep your tools ready and stay patient throughout the process. Now, your door has a strong, reliable deadbolt you can trust.
