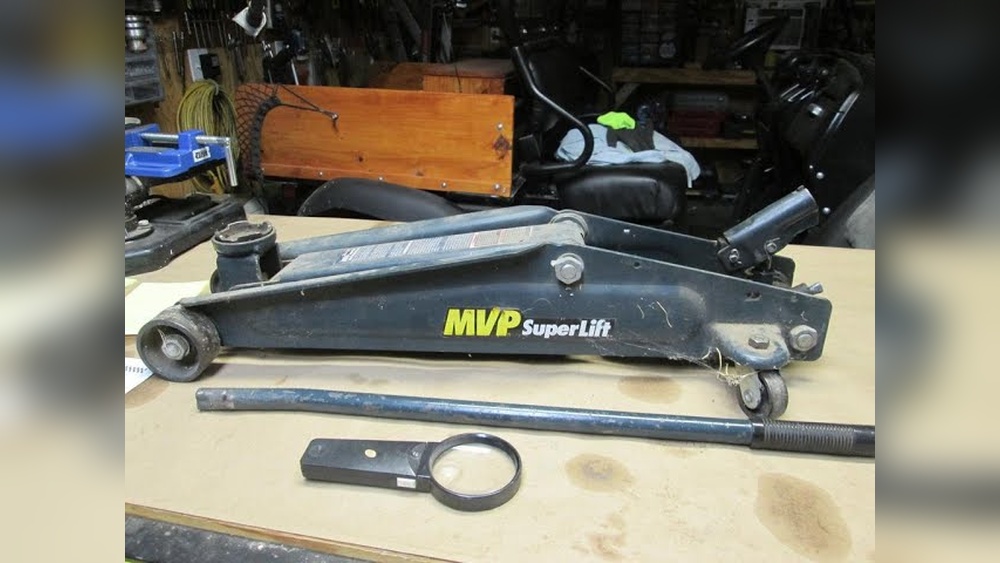

If you own an MVP WF-521 floor jack, you know how important it is to keep it in top shape. But what happens when the fluid runs low?
Knowing how to refill your floor jack properly can save you time, prevent damage, and keep your equipment working smoothly. In this guide, you’ll learn exactly how to refill your MVP WF-521 floor jack step by step. By the end, you’ll feel confident handling this simple task yourself—no more delays or costly repairs.
Ready to keep your floor jack ready for action? Let’s dive in.
Credit: issuu.com
Mvp Wf-521 Floor Jack Basics
The MVP WF-521 floor jack is a useful tool for lifting vehicles safely. It helps with repairs and maintenance tasks. Understanding its basics makes using it easier and safer.
This floor jack uses hydraulic power to lift heavy loads. It has simple parts that work together to raise and lower the jack smoothly. Knowing these parts helps with refilling and fixing it.
Key Features
The MVP WF-521 has a strong steel frame for durability. It lifts vehicles up to 2 tons with ease. The jack has a wide base for stability during use.
It includes a safety valve to prevent overloading. The handle is long for easy pumping. Wheels allow smooth movement around the workspace.
Common Issues
One common problem is slow or uneven lifting. This often happens due to low hydraulic fluid. Leaks in seals or hoses can cause fluid loss.
The jack may also fail to hold weight if air enters the system. Rust or dirt buildup can block parts and reduce performance. Regular checks help spot these problems early.
Tools And Materials Needed
Before refilling the MVP WF-521 floor jack, gather all necessary tools and materials. Having everything ready saves time and avoids interruptions. Proper tools ensure a safe and clean refill process. Use the right materials to keep the jack working smoothly.
Essential Tools
Prepare a wrench to open the jack’s fill plug. A clean funnel helps pour fluid without spills. Have a clean cloth or rag to wipe any drips. A small container can catch old fluid during draining. Gloves protect your hands from oil and dirt.
Required Fluids And Materials
Use the recommended hydraulic fluid for the MVP WF-521. Avoid mixing different fluid types to prevent damage. Keep a seal or gasket handy if the original one is worn. Have a drip tray or newspaper to protect your workspace from spills.
Preparing The Jack For Refill
Preparing your MVP WF-521 floor jack for a refill is a key step to keep it working well. Before adding any hydraulic fluid, you must get the jack ready. This process helps avoid spills and keeps the jack safe to use.
Taking time to prepare the jack properly can save you from damage. It also makes the refill process smooth and easy. Follow simple steps to check and clean the jack before you start adding fluid.
Safety Precautions
Always work in a clean, flat area to keep the jack stable. Wear gloves to protect your hands from oil and dirt. Keep open flames or sparks far away from the jack and fluid. Use eye protection to stop splashes from getting into your eyes. Never try to refill the jack while it is under load or pressure.
Locating The Reservoir
The reservoir holds the hydraulic fluid inside the jack. Find the filler plug on top of the jack’s main body. It often looks like a small, round cap. Clean around the plug before opening it to stop dirt from entering. Unscrew the plug slowly to release any built-up pressure safely.
Credit: d1baseball.com
Draining Old Hydraulic Fluid
Draining old hydraulic fluid is an essential step before refilling your MVP WF-521 floor jack. Removing the used fluid helps keep the jack working smoothly. Old fluid can get dirty and lose its power. This affects the jack’s lifting ability and safety.
Changing the fluid regularly prevents damage and extends the jack’s life. The process is simple but requires care. Follow the steps below for a clean and safe fluid drain.
Prepare Your Work Area
Find a flat surface to work on. Place the jack on a strong, stable base. Keep some rags or paper towels nearby. Have a container ready to catch the old fluid. Wear gloves to protect your hands.
Locate The Drain Plug
Turn the jack upside down carefully. Look for the small drain plug on the bottom. This plug lets the old fluid flow out. Use a wrench to loosen the plug slowly. Be ready for the fluid to start dripping.
Drain The Old Fluid
Let all the hydraulic fluid flow into the container. Avoid spilling the fluid on the floor. Keep the jack steady during draining. After draining, wipe the area around the drain plug clean. Screw the drain plug back in tightly.
Choosing The Right Hydraulic Fluid
Choosing the right hydraulic fluid is key to keeping your MVP WF-521 floor jack working well. The fluid moves power inside the jack and helps it lift heavy loads smoothly. Using the wrong fluid can cause damage or poor performance.
Hydraulic fluids come in different types and qualities. Picking the best one protects the jack’s parts and extends its life. Knowing what type suits your floor jack makes refilling easy and safe.
Understand The Jack Manufacturer’s Recommendations
Check the manual for the exact fluid type recommended. Manufacturers test their jacks with specific fluids. Using their choice ensures proper function and avoids warranty issues.
Choose The Correct Fluid Viscosity
Viscosity means how thick or thin the fluid is. The right thickness helps the fluid flow properly under pressure. Too thick or too thin fluid can cause leaks or slow operation.
Select High-quality Hydraulic Oil
Good hydraulic oil resists heat and wear. It keeps the jack’s parts clean and prevents rust. Avoid low-quality oils that can break down quickly and harm the jack.
Use Fluid Suitable For Your Work Environment
Consider temperature and conditions where you use the jack. Some fluids work better in cold or hot weather. Matching fluid to the environment helps the jack perform well.
Refilling The Floor Jack
Refilling the MVP WF-521 floor jack is a simple task that keeps your jack working smoothly. The right fluid level helps the jack lift heavy loads safely. This section guides you through the refilling process step-by-step. Follow the instructions carefully to avoid damage and ensure the jack works well every time.
Filling Steps
First, place the jack on a flat surface. Open the oil fill plug located on the side. Use a clean cloth to wipe around the plug area. This stops dirt from entering the jack. Slowly pour hydraulic fluid into the fill hole. Fill it until the fluid reaches the bottom of the fill hole. Avoid overfilling to prevent leaks. Close the fill plug tightly after filling. Wipe any spilled fluid from the jack.
Avoiding Air Bubbles
Air bubbles reduce the jack’s lifting power. After filling, pump the handle slowly. This helps remove trapped air inside the system. Repeat pumping until the jack lifts smoothly. Check the fluid level again and top up if needed. Always keep the jack upright during this process. This prevents air from entering the fluid reservoir. Properly removing air ensures the jack works safely and efficiently.
Testing And Adjustments
Testing and adjustments are important after refilling your MVP WF-521 floor jack. This step makes sure the jack works safely and properly. Checking its performance helps spot any issues early. Adjustments fix small problems and keep the jack in good shape.
Checking Jack Performance
Start by lowering the jack completely. Pump the handle slowly to raise the lifting arm. Notice if it lifts smoothly and steadily. The jack should hold weight without dropping. Listen for strange noises or leaks. Test the release valve to ensure it opens easily. Check if the jack lowers smoothly and controlled. These checks confirm the refill was successful.
Troubleshooting Common Problems
If the jack does not lift well, air might be trapped inside. Bleed the jack by slightly opening the release valve while pumping. Oil leaks show worn seals or loose parts. Tighten bolts and clean the area. Strange noises might mean low oil or damaged parts. Add more hydraulic fluid if needed. If problems persist, consult a professional for repair.
Credit: digital.lib.ecu.edu
Maintenance Tips For Longevity
Proper maintenance keeps your MVP WF-521 floor jack working longer. Regular care prevents damage and ensures smooth operation. Follow these tips to extend your jack’s life and maintain safety.
Check Hydraulic Fluid Levels Regularly
Low hydraulic fluid causes poor lifting performance. Check fluid levels often and refill as needed. Use the recommended fluid type to avoid damage.
Clean The Jack After Each Use
Dirt and debris can clog moving parts. Wipe the jack clean with a dry cloth after use. Keep the lifting arm and wheels free of grime.
Inspect For Leaks And Wear
Look closely at seals and hoses for leaks. Replace worn or damaged parts quickly. Leaks reduce pressure and can cause failure.
Lubricate Moving Parts
Apply grease or oil to joints and wheels regularly. This reduces friction and prevents rust. Smooth movement helps avoid strain on the jack.
Store The Jack Properly
Keep the jack in a dry, cool place. Avoid exposure to moisture and extreme temperatures. Proper storage protects against rust and corrosion.
Frequently Asked Questions
How Do I Refill A Mvp Wf-521 Floor Jack?
To refill, first lower the jack and remove the oil fill plug. Add high-quality hydraulic jack oil slowly until full. Replace the plug securely before testing the jack’s lift. Always use the recommended oil type for optimal performance and safety.
What Type Of Oil Is Best For Mvp Wf-521?
Use only high-quality hydraulic jack oil specified by the manufacturer. Avoid motor or brake fluids, as they can damage the jack. Proper oil ensures smooth operation and prevents leaks or corrosion inside the jack’s hydraulic system.
How Often Should I Refill The Floor Jack Oil?
Refill or check oil every 6 months or after heavy use. Regular maintenance keeps the hydraulic system functioning properly. Inspect oil levels before major tasks to avoid jack failure and ensure safety during lifting.
Can I Refill The Jack Without Lowering It Completely?
No, always lower the jack fully before refilling oil. This prevents pressure buildup and allows accurate oil level assessment. Refilling while raised can cause spills and damage to internal components.
Conclusion
Refilling your MVP WF-521 floor jack keeps it working well. Follow the steps carefully to avoid damage. Use the right hydraulic fluid for best results. Check for leaks and clean the jack regularly. Proper care helps your jack last longer and stay safe.
Simple maintenance saves time and money in the long run. Keep your tools ready for any job. Easy to do, and worth the effort.
