Have you ever wondered how you can turn a light on or off from two different switches? It might seem like a small trick, but understanding how two switches control one light can save you time and frustration.
Whether you want to fix a flickering light or add convenience to your home, knowing this simple wiring method puts you in control. You’ll discover exactly how it works and how you can use it to make your living space smarter and easier to manage.
Keep reading—you’ll be surprised at how straightforward it really is!
Basic Wiring Setup
Understanding the basic wiring setup helps explain how two switches control one light. This setup is common in homes for convenience. It lets you turn a light on or off from two different places. The wiring uses specific components and follows a clear circuit design. Knowing the power flow is also important to grasp how the system works safely and efficiently.
Components Needed
You need two single-pole double-throw (SPDT) switches. These are also called three-way switches. A light fixture is required to connect the switches. Electrical cables connect all parts: a power cable, traveler wires, and a cable to the light. Basic tools like wire strippers and screwdrivers are necessary for installation.

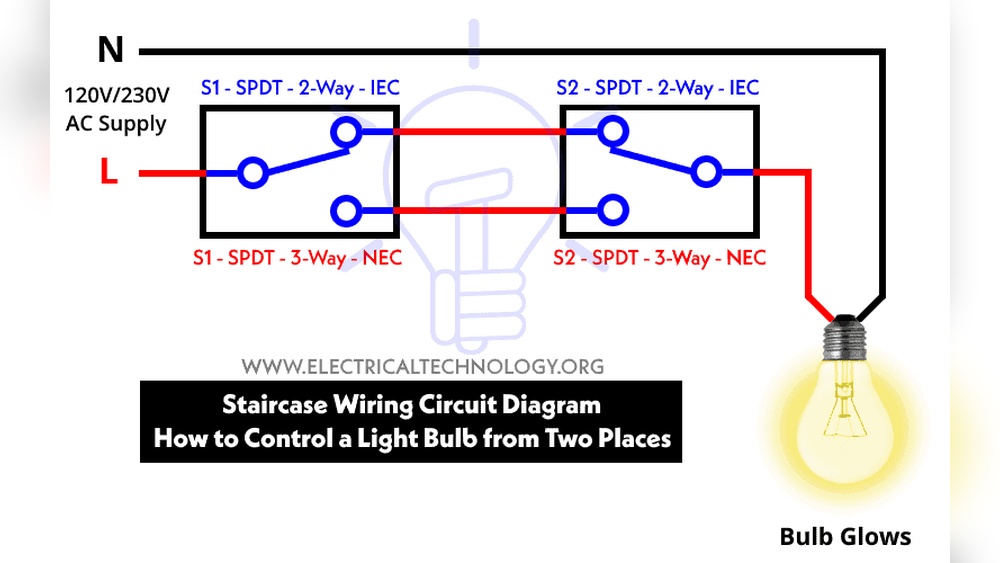

Circuit Diagram
The circuit diagram shows the connection layout. The power source connects to the first switch’s common terminal. Two traveler wires run between both switches. The second switch’s common terminal connects to the light fixture. Finally, the light links back to the neutral wire of the power source. This simple loop controls the light from either switch.
Power Flow
Power flows from the source to the first switch. It travels through one of the traveler wires to the second switch. The second switch directs power to the light fixture or stops it. The light turns on if the circuit is complete. If the circuit breaks, the light stays off. This flow allows control from both switches.
Credit: socketstore.co.uk
How Two Switches Work Together
Two switches control one light through a clever wiring system. This setup allows you to turn the light on or off from two different places. It is common in hallways, stairs, or large rooms. The switches work together to change the flow of electricity. This flow controls the light’s state, making it easy to operate.
Single-pole Double-throw Switches
Each switch is called a single-pole double-throw (SPDT) switch. This type has three terminals. One terminal connects to the power source or the light. The other two terminals connect to wires called travelers. The switch flips between these two terminals. This change directs electricity through one path or the other.
Traveler Wires
Traveler wires link the two switches. There are usually two traveler wires between them. These wires carry electricity from one switch to the other. Depending on the switch positions, the current flows through one traveler wire or the other. This system allows the light to turn on or off from either switch.
Switch Positions And Light Control
Each switch has two positions: up or down. The light’s state depends on the combination of these positions. If both switches connect the same traveler wire, the light turns on. If they connect different traveler wires, the circuit breaks, and the light turns off. This simple system gives flexible control with just two switches.
Common Wiring Methods
Two switches controlling one light is common in many homes. This setup lets you turn a light on or off from two different places. Several wiring methods make this possible. Each has its own way of connecting the switches and light. Understanding these methods helps with installation or troubleshooting.
Traditional Two-way Switching
This method uses two simple switches called single-pole, double-throw (SPDT). Each switch has three terminals. The switches connect with two wires called travelers. The light connects to the power source and one switch. Flipping either switch changes the connection. This turns the light on or off from either switch.
Using Three-way Switches
Three-way switches are designed for controlling a light from two locations. They have three terminals plus a ground. Two traveler wires run between the switches. One switch connects to the power source. The other connects to the light. The switches work together to complete or break the circuit. This allows you to control the light from both switches.
Alternatives And Variations
Some setups use smart switches or wireless controls instead of wires. These systems send signals to control the light. Another option is using intermediate switches for more than two control points. This adds extra switches between the two main switches. Each method changes the wiring but keeps the same goal. They let you control lighting from multiple places easily.
Credit: theorycircuit.com
Step-by-step Installation
Installing two switches to control one light allows you to turn the light on or off from two different places. This setup is common in hallways or large rooms. The installation requires careful wiring and safety measures. Follow these steps to install the switches correctly and safely.
Safety Precautions
Turn off power at the circuit breaker before starting. Use a voltage tester to confirm no electricity flows to the wires. Wear insulated gloves to protect from shocks. Avoid working in wet or damp areas. Keep tools and workspace organized to prevent accidents.
Wiring The First Switch
Connect the power source wire to the common terminal of the first switch. Attach the traveler wires to the two traveler terminals. Make sure connections are tight and secure. Use wire nuts to join wires and wrap with electrical tape. Place the switch carefully into the box.
Wiring The Second Switch
Connect the traveler wires from the first switch to the traveler terminals on the second switch. Attach the wire going to the light to the common terminal of the second switch. Check all wire connections are firm and insulated. Push the switch into the box and fasten it.
Testing The Setup
Turn the circuit breaker back on. Test the switches by flipping each one on and off. The light should respond from both switches. If it does not work, turn off power and check all wiring again. Ensure traveler wires are connected to the correct terminals.
Troubleshooting Tips
Troubleshooting two switches that control one light can be tricky. Problems often arise from wiring mistakes or faulty switches. Simple checks can save time and frustration. Follow these tips to find and fix common issues safely.
Identifying Wiring Errors
Check if the switches are wired correctly. Incorrect connections cause the light to flicker or not turn on. Use a voltage tester to see if power reaches both switches. Look for loose or damaged wires. Confirm that traveler wires connect the two switches properly. Mistakes often happen during installation or repairs.
Common Problems And Fixes
The light does not turn on or off from both switches. One switch works but the other does not. The light flickers when using either switch. Tighten loose wires and replace damaged switches. Clean switch contacts if dirty. Replace switches if they feel loose or have a burning smell. Sometimes, the problem is a blown fuse or tripped breaker.
When To Call A Professional
Electrical work can be dangerous without proper knowledge. Call an electrician if unsure about wiring or if problems persist. Avoid DIY fixes when wires are damaged or connections are unclear. A professional ensures safety and correct repairs. They have tools and training to solve complex issues quickly.
Credit: diy.stackexchange.com
Frequently Asked Questions
How Do Two Switches Control One Light?
Two switches control one light using a three-way switch system. This setup allows you to turn the light on or off from two locations. It uses special wiring with traveler wires connecting both switches to the light fixture for seamless control.
What Wiring Is Needed For Two Switches And One Light?
You need a three-wire cable for two switches controlling one light. This cable includes a hot wire, neutral wire, and two traveler wires. The traveler wires connect the two switches, enabling them to work together to control the light.
Can I Install Two Switches For One Light Myself?
Yes, if you understand electrical wiring basics, you can install two switches yourself. Always turn off power before starting. Follow wiring diagrams carefully and use a voltage tester for safety. If unsure, hiring a licensed electrician is recommended.
Why Use Two Switches For One Light?
Two switches provide convenience and flexibility, especially in large rooms or hallways. They allow you to control the same light from different locations. This setup improves accessibility and can enhance home safety and energy efficiency.
Conclusion
Two switches controlling one light offer great convenience. You can turn the light on or off from different places. This setup uses a simple wiring method called a three-way switch. It saves you from walking back and forth in the dark.
Understanding this helps you fix or install switches easily. Now, you know how two switches work together to control one light. Simple, practical, and useful for many rooms in your home.
