Are you tired of walking into a dark room and fumbling for the light switch? Adding a 3 way light switch lets you control one light from two different spots—making your home more convenient and safer.
Whether it’s for a hallway, staircase, or large room, this simple upgrade can change how you use your space. In this guide, you’ll learn exactly how to add a 3 way light switch step-by-step, even if you’re not an expert.
Ready to make your lighting smarter and easier? Let’s dive in.
Tools And Materials Needed
Adding a 3 way light switch needs the right tools and materials. This helps the job go smooth and safe. Having everything ready saves time and avoids frustration.
Use tools made for electrical work. They help keep you safe and make the job easier. Choose materials that fit your home’s wiring and switch type.
Essential Tools For Installing A 3 Way Light Switch
- Screwdriver (flathead and Phillips)
- Wire stripper and cutter
- Voltage tester
- Needle-nose pliers
- Electrical tape
- Drill (optional for new holes)
- Flashlight or work light
Materials Required For The Installation
- 3 way light switches (two units)
- 14/3 or 12/3 electrical wire (depending on circuit)
- Wire nuts/connectors
- Wall plates
- Electrical boxes (if new boxes needed)
- Cable clamps
- Grounding wire
Safety Gear To Protect Yourself
- Insulated gloves
- Safety glasses
- Dust mask (for drilling)
- Non-conductive shoes
Safety Precautions
Safety is very important when adding a 3-way light switch. Working with electricity can be dangerous. Taking the right precautions protects you and your home. Always prepare before starting the work.
Turn Off The Power
Switch off the power at the main circuit breaker. Do not rely on the wall switch alone. Use a voltage tester to check if wires are live. Never touch wires if the power is on.
Use Proper Tools
Use insulated tools made for electrical work. Avoid metal tools without insulation. This reduces the risk of electric shock. Having the right tools makes the job safer and easier.
Wear Safety Gear
Wear rubber-soled shoes to prevent shocks. Use safety goggles to protect your eyes. Gloves can protect your hands from sharp wires. Safety gear keeps you safe from accidents.
Double Check Connections
Make sure all wire connections are secure and correct. Loose wires can cause shorts or fires. Follow the wiring diagram carefully. Double checking saves time and prevents problems later.
How 3 Way Switches Work
Understanding how 3 way switches work helps you control lights from two places. This setup is common in hallways, stairs, or large rooms. It makes turning lights on or off very convenient.
A 3 way switch controls a light using two switches. Each switch can change the flow of electricity to the light. This allows the light to turn on or off from either switch.
Basic Components Of A 3 Way Switch
There are two switches and one light. Each switch has three terminals. One terminal is the common, and two are travelers. Wires connect these terminals to control the light.
The Role Of Traveler Wires
Traveler wires carry electricity between the two switches. They allow the switches to work together. Depending on the switch position, current flows through one traveler or the other.
How Switching Changes Light State
Flipping either switch changes the path of electricity. It either completes or breaks the circuit. This turns the light on or off from any switch location.
Credit: www.youtube.com
Identify Existing Wiring
Start by locating the existing wires in the switch box. Look for the hot, traveler, and neutral wires. This step helps ensure proper connection for the 3-way switch setup.
Understanding Your Current Wiring Setup
Start by turning off power to the light switch at the breaker box. Safety first. Remove the switch cover and use a voltage tester to ensure no electricity flows. Look inside the switch box to see the wires connected to the switch. Note the colors and how many wires you find. Common colors include black, white, and red. Each wire has a role in the circuit.
Identifying The Common And Traveler Wires
Find the common wire first. It usually connects to a different-colored screw on the switch. Traveler wires carry current between switches and often connect to brass screws. These wires allow control of one light from two locations. Mark each wire with tape or labels for easy identification. This step helps avoid confusion during installation.
Checking Wire Condition And Length
Look for any damaged or frayed wires. Replace if needed before proceeding. Ensure wires are long enough to connect to the new 3-way switch. Short wires may require extensions. Proper wire length ensures a secure connection and better safety. Good wiring condition helps prevent future electrical issues.
Turn Off Power
Turning off power is the first and most important step when adding a 3 way light switch. It keeps you safe from electric shock. Always treat electricity with respect. Safety comes first before any wiring work.
Switches and wires carry live current. Touching them without power off can cause injury. Take time to find the right circuit breaker or fuse. Make sure the electricity is fully off before starting.
Locate The Circuit Breaker
Find the main electrical panel in your home. It is usually in the basement or a utility room. Open the panel door carefully. Look for labels on switches that show which one controls the light switch.
Turn Off The Correct Breaker
Flip the breaker switch to the off position. This stops power to the light switch you want to change. Double-check by flipping the switch on and off. The light should not respond if power is off.
Use A Voltage Tester
Use a voltage tester to confirm no power is present. Test the wires in the switch box. The tester will show if electricity is still live. Never trust just the breaker switch alone.
Remove Old Switches
Start by turning off the power to the switch. Carefully remove the old switches from the wall box. Keep wires organized for easy connection later.
Start by switching off the power at the circuit breaker. This step keeps you safe from electrical shocks. Double-check that the power is off by testing the switch with a voltage tester.
Remove Switch Cover
Use a screwdriver to take off the switch cover plate. Keep the screws in a safe place. The cover will come off easily once the screws are removed.
Unscrew The Old Switch
Unscrew the mounting screws holding the switch to the electrical box. Gently pull the switch out to see the wiring behind it. Avoid pulling too hard to prevent wire damage.
Note Wire Connections
Look closely at how the wires connect to the switch. Take a photo or label wires to remember their positions. This step helps you connect the new 3-way switch correctly.
Disconnect Wires
Use a screwdriver to loosen the screws holding the wires. Carefully remove the wires from the old switch. Keep the wires straight and untangled for the next step.

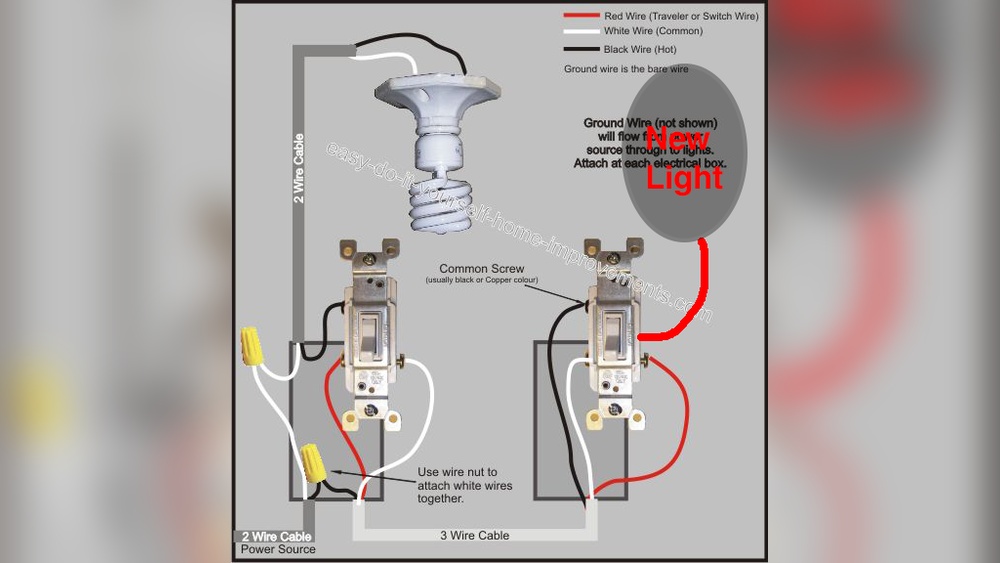

Connect New 3 Way Switches
Connecting new 3 way switches lets you control a light from two places. This is useful for hallways, stairs, or big rooms. The process is simple if you follow the steps carefully. Below, find clear instructions on wiring each switch.
Wiring The First Switch
Start by turning off the power at the breaker. Remove the old switch if there is one. Identify the common terminal on the new switch; it is usually a different color. Connect the black (hot) wire to the common terminal. Attach the two traveler wires to the other terminals. Use wire nuts to secure all connections. Push the wires gently into the box. Screw the switch to the box and attach the cover plate.
Wiring The Second Switch
Turn off the power before starting. Locate the switch box and remove the old switch. Find the common terminal on the new switch. Connect the black wire from the light fixture to this terminal. Attach the two traveler wires to the other terminals. Make sure all wires are tight and secure. Place the switch back into the box. Screw it in and put on the cover plate. Turn the power back on to test the switches.
Credit: diy.stackexchange.com
Mount Switches And Restore Power
Mounting the switches and restoring power are the final steps in installing a 3-way light switch. These steps complete the electrical setup and allow the switches to function properly. Careful handling during this phase ensures safety and proper operation.
First, secure the switches into their electrical boxes. Make sure the wires are neatly placed inside. Avoid pinching or loosening any connections as you mount the switches. Use screws to fasten the switches firmly. A stable switch prevents future electrical issues.
After mounting, attach the switch covers. These covers protect the wiring and give a clean, finished look. Check that all screws are tight but do not over-tighten.
Next, restore power at the circuit breaker. Flip the breaker back on to supply electricity to the switches. Test each switch to confirm the light turns on and off from both locations. If the light does not work, double-check all connections.
Safety tip: Avoid touching wires or metal parts while turning on the power. Use a voltage tester to ensure no live wires before handling switches.
Secure The Switches Properly
Use the mounting screws to fix the switches inside the boxes. Keep wires tidy to prevent damage. A well-secured switch lasts longer and works better.
Attach Switch Covers
Place the cover plates over the mounted switches. Tighten the screws gently. Covers protect wires and improve appearance.
Turn On The Circuit Breaker
Restore power by switching the breaker to the ON position. This energizes the switches and light fixture.
Test The Switches
Flip both switches to check if the light responds. Proper wiring means the light turns on and off from either switch.
Test Your Installation
Testing your 3 way light switch installation is essential. It confirms that both switches work properly. Testing ensures safety and avoids future issues.
Check each switch carefully. Make sure the light turns on and off from both locations. This step saves time and effort later.
Turn Power Back On
Restore electricity at the circuit breaker. Do this before testing the switches. Never test with the power off.
Test Each Switch Individually
Flip the first switch up and down. Watch if the light responds correctly. Repeat the same with the second switch.
Check Both Switches Work Together
Turn the light on using the first switch. Turn it off using the second. This confirms the 3 way switch wiring is correct.
Look For Flickering Or Delays
Notice any flickering or slow response. These signs may mean a loose connection. Tighten screws or check wiring if needed.
Use A Voltage Tester
Use a voltage tester to verify power flow. Check terminals on both switches. This adds an extra layer of safety.
Credit: www.youtube.com
Troubleshooting Tips
Troubleshooting a 3-way light switch can be tricky. Small mistakes cause the switch not to work right. Understanding common problems helps fix the issue quickly. This section guides you through basic checks and fixes to get the switch working.
Check Wiring Connections
Loose or wrong wires often cause switch failure. Turn off power before checking wires. Look for any loose or disconnected wires. Make sure each wire connects to the correct terminal. Tighten screws to secure wires firmly.
Test Switch Functionality
Defective switches stop the light from working. Use a voltage tester to check power flow. Flip each switch to see if it controls the light. Replace the switch if it shows no power or acts irregular.
Verify Grounding
Proper grounding ensures safety and switch performance. Check if the ground wire is attached to each switch. Use a tester to confirm grounding. Add or fix grounding wires if missing or broken.
Inspect Light Bulbs And Fixtures
Sometimes, the problem is not the switch. Remove bulbs and test them in another socket. Check for loose connections in the fixture. Replace faulty bulbs or fix loose parts.
Confirm Power Supply
Power issues can stop the switch from working. Check your circuit breaker or fuse box. Reset tripped breakers or replace blown fuses. Test other outlets to ensure power is on.
Frequently Asked Questions
What Tools Do I Need For A 3 Way Light Switch?
You need a screwdriver, wire stripper, voltage tester, electrical tape, and a 3 way switch. Safety gloves and a flashlight can help too.
How Does A 3 Way Light Switch Wiring Work?
It uses two switches to control one light. Travelers carry current between switches, allowing either switch to turn the light on or off.
Can I Install A 3 Way Switch Myself?
Yes, if you understand electrical wiring and safety. Always turn off power before starting. Consult a professional if unsure.
What Wires Connect To A 3 Way Switch?
Connect the common wire to the common terminal, and traveler wires to traveler terminals. Ground wires should be connected to the green screw.
Conclusion
Adding a 3-way light switch can make your home more convenient. It lets you control one light from two places. The steps are clear and easy to follow. Always check your wires and turn off power first. Take your time and work safely.
Soon, you will enjoy better lighting control. This simple upgrade can improve your daily routine. Try it yourself and see how helpful it is.
