If you want to boost your home’s security, installing a Kwikset double cylinder deadbolt lock is a smart move. You might think it’s complicated, but with the right steps, you can do it yourself quickly and easily.
This lock gives you control over both sides of your door, making your home safer from unwanted entry. Keep reading, and you’ll learn exactly how to install it right the first time—no confusion, no extra trips to the hardware store.
By the end, you’ll feel confident and secure knowing your home is protected the way it should be.
Choosing The Right Kwikset Double Cylinder Deadbolt
Choosing the right Kwikset double cylinder deadbolt is important for your home’s safety. This lock type uses a key on both sides of the door. It adds extra security for doors with glass near the lock. Picking the right model helps ensure your lock fits and works well. Consider the lock’s benefits, door type, and finish before buying.
Benefits Of Double Cylinder Locks
Double cylinder locks improve safety by requiring a key to open from both sides. This stops intruders from breaking glass and reaching inside to unlock the door. These locks also help prevent accidental lockouts. They offer better control over who can enter your home. Ideal for doors with windows or glass panels.
Compatibility With Door Types
Not all doors fit double cylinder deadbolts. Check your door’s thickness before choosing a lock. Most Kwikset models fit standard doors between 1-3/8 and 1-3/4 inches thick. Metal and wood doors usually work well. Make sure the lock’s dimensions match your door’s specifications for easy installation and secure fit.
Selecting The Correct Finish
Choose a lock finish that matches your door hardware and style. Kwikset offers finishes like satin nickel, polished brass, and bronze. The right finish protects the lock from weather and wear. It also keeps your door looking neat. Pick a finish that fits your home’s design and lasts long outdoors.
Credit: www.homedepot.com
Tools And Materials Needed
Installing a Kwikset double cylinder deadbolt lock requires specific tools and materials. Having everything ready makes the process smoother. It also helps avoid delays and frustration.
This section lists all essential tools and extra supplies needed. Prepare them before starting your installation project.
Essential Tools List
- Phillips head screwdriver
- Flathead screwdriver
- Power drill with drill bits
- Measuring tape
- Pencil or marker
- Chisel
- Hammer
- Utility knife
Additional Supplies
- Wood filler or putty (for touch-ups)
- Sandpaper
- Masking tape
- Safety glasses
- Work gloves
- Door lock template (usually included with the lock)
Preparing The Door For Installation
Preparing your door for a Kwikset double cylinder deadbolt lock is the first important step. This step ensures the lock fits perfectly and works well. Careful preparation helps avoid problems during installation and keeps your door secure.
Start with the right tools and clear workspace. Take your time. Accurate measuring and drilling make the process smooth.
Measuring And Marking
Measure the door thickness to confirm lock compatibility. Most Kwikset deadbolts fit doors 1 3/8 to 1 3/4 inches thick.
Mark the exact spots for the lock and latch. Use a pencil and tape measure. Mark the center of the door edge for the latch hole. Then, mark the door face for the lock hole, typically 2 3/8 or 2 3/4 inches from the edge.
Check all marks twice. Correct marks prevent misalignment and damage.
Drilling Proper Holes
Choose a drill bit matching the lock’s hole size. Typically, a 2 1/8-inch hole saw works for the lock hole. Use a spade bit for the latch hole, usually 1-inch diameter.
Drill slowly and steadily. Keep the drill straight to avoid angled holes. Start drilling from the door face for the lock hole. Drill halfway through, then finish from the edge to prevent splintering.
Clear out wood chips and smooth edges with sandpaper. Clean holes help the lock fit tightly and operate smoothly.
Installing The Deadbolt Components
Installing the deadbolt components is a key step in securing your door. This process puts together the exterior and interior parts. Proper fitting ensures the lock works smoothly and safely. Follow clear steps to install each piece correctly. Take your time and handle each part with care.
Fitting The Exterior Cylinder
Start by placing the exterior cylinder into the hole on the door. Align the cylinder so the keyhole faces outside. Push it gently until it sits flush against the door surface. Make sure the tailpiece goes through the latch mechanism inside the door. This piece connects the exterior part to the lock system.
Attaching The Interior Thumbturn
Next, attach the interior thumbturn on the inside of the door. Line it up so the tailpiece fits into the thumbturn slot. Press the thumbturn firmly against the door surface. Check that it turns easily to lock and unlock the deadbolt. The thumbturn gives you manual control from inside your home.
Securing The Lock Assembly
Use the screws provided to secure the exterior cylinder and thumbturn together. Insert screws through the interior plate and tighten them evenly. Avoid over-tightening to prevent damage to the lock parts. Test the lock by turning the thumbturn and using the key outside. Ensure smooth operation before finishing the installation.
Installing The Strike Plate
Installing the strike plate is a key step in securing your Kwikset double cylinder deadbolt. The strike plate helps hold the bolt firmly in place inside the door frame. Proper installation ensures the lock works smoothly and adds strength against forced entry.
Take care to align the strike plate correctly. A misaligned plate can cause the deadbolt to stick or not latch fully. Follow the steps carefully to position and secure the strike plate for best results.
Positioning The Strike Plate
Place the strike plate on the door jamb where the deadbolt will extend. The bolt should fit perfectly into the hole cut in the jamb. Check that the plate sits flush against the wood. Mark the screw holes with a pencil. Adjust the plate to make sure the bolt moves easily inside the hole.
Screwing And Reinforcing
Use the screws provided with your deadbolt to attach the strike plate. Drive each screw straight and tight, but avoid splitting the wood. For extra security, replace standard screws with longer ones. These reach deeper into the framing behind the jamb. This reinforcement helps resist strong force on the door.
Testing The Deadbolt Lock
Testing the deadbolt lock is a key step after installation. It ensures your lock works correctly and keeps your home safe. This step checks all parts of the lock. You will test the key, the thumbturn, and the overall locking action. Take time to do this carefully. It helps avoid problems later.
Checking Key Operation
Insert the key into the lock cylinder. Turn the key slowly to lock and unlock. The key should move smoothly without sticking. Try turning the key both ways. If it feels tight or hard, check the alignment. The key must turn easily for proper security.
Verifying Thumbturn Function
Use your thumb to turn the inside thumbturn. It should move smoothly and without force. Turn it to lock and unlock the door. Make sure it fully locks the deadbolt in place. The thumbturn lets you control the lock from inside quickly.
Ensuring Smooth Locking And Unlocking
Close the door and use the key and thumbturn to lock it. Open the door by unlocking with the key and thumbturn. Both actions should feel smooth and natural. The deadbolt should slide fully into the strike plate. Any resistance means adjustments are needed.
Troubleshooting Common Issues
Installing a Kwikset double cylinder deadbolt lock can be straightforward. Yet, some common issues may arise during or after installation. Troubleshooting these problems helps ensure your lock works properly. This section covers simple fixes for typical challenges.
Misalignment Problems
Misalignment occurs when the lock and strike plate do not line up. This causes difficulty in locking or unlocking. Check if the deadbolt slides smoothly into the strike plate. If not, adjust the strike plate position by loosening screws and moving it slightly. Test multiple times for perfect fit. Sometimes, filing the strike plate edges helps if the deadbolt sticks. Ensure the door is square and not warped, as this affects alignment.
Key Not Turning Smoothly
A key that won’t turn easily can frustrate users. Dirt or debris inside the lock cylinder often blocks smooth movement. Spray a small amount of graphite lubricant into the keyhole for better action. Avoid oil-based lubricants as they attract dust. Check the key itself for wear or damage. Using a worn key can cause sticking. Try a spare key to see if it works better. If the problem continues, realign the lock and strike plate.
Lock Jamming Solutions
Lock jamming can stop your door from locking or unlocking. It usually happens due to internal parts misaligned or dirt buildup. Remove the lock carefully to inspect inside. Clean the cylinder with compressed air to remove dust. Lubricate with graphite powder for smooth operation. If parts are bent or broken, replace them immediately. Tighten all screws to keep components stable. Test the lock several times after fixing to confirm it works perfectly.
Credit: www.homedepot.com
Maintaining Your Deadbolt Lock
Maintaining your Kwikset double cylinder deadbolt lock helps keep it working smoothly. Regular care prevents jams and extends the lock’s life. A well-maintained lock also improves your home’s security.
Lubrication Tips

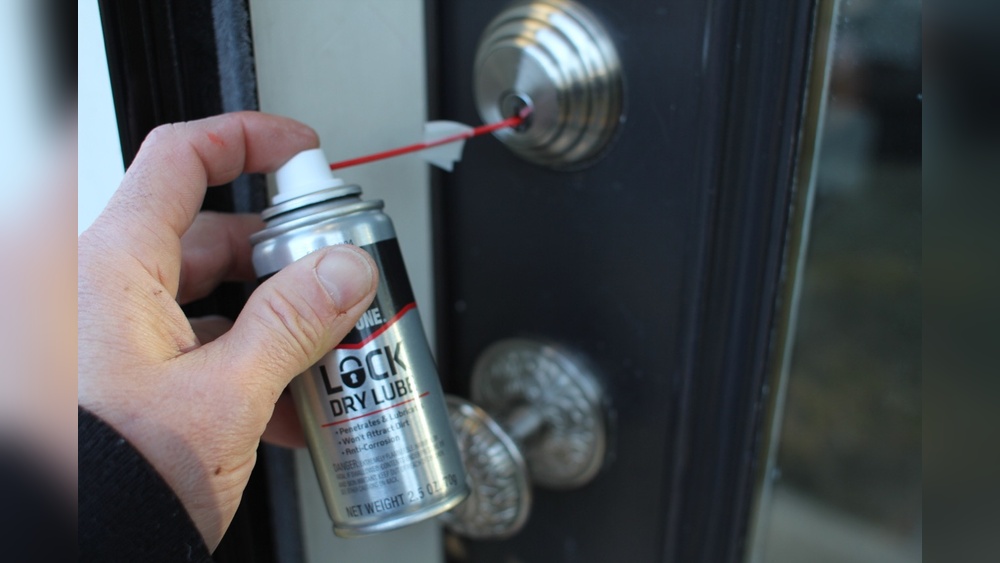

Use graphite powder or silicone spray to lubricate the lock. Avoid oil-based lubricants; they attract dust and dirt. Apply a small amount into the keyhole and turn the key slowly. This keeps the internal parts moving freely.
Periodic Checks
Check your lock every few months for signs of wear or damage. Make sure the key turns easily without force. Inspect the deadbolt for alignment with the strike plate. Tighten any loose screws on the lock and door frame.
When To Replace Parts
Replace parts if the lock sticks or the key won’t turn. Broken keys or worn pins need immediate attention. If the deadbolt does not fully extend, check for misalignment. Persistent problems may mean it’s time to replace the entire lock.
Credit: www.youtube.com
Frequently Asked Questions
What Tools Are Needed To Install A Kwikset Double Cylinder Lock?
You need a screwdriver, drill, measuring tape, pencil, and the lock kit. These tools help you fit the lock accurately and securely. Having them ready speeds up the installation process and ensures proper alignment.
How Do I Align The Deadbolt With The Door Frame?
Mark the door frame where the bolt hits. Drill a hole for the strike plate. Secure the plate tightly to ensure the bolt slides smoothly into place.
Can I Install A Double Cylinder Lock On Any Door?
Double cylinder locks work best on doors with glass near the lock. They provide extra security by requiring a key on both sides. Ensure your door material supports drilling and mounting the lock properly.
How Long Does It Take To Install This Deadbolt Lock?
Installation usually takes 30 to 60 minutes. Time depends on your experience and door type. Following instructions carefully ensures a smooth and quick setup.
Conclusion
Installing a Kwikset double cylinder deadbolt lock is straightforward. Follow each step carefully for best results. Take your time and handle tools with care. This lock adds extra security to your home. Enjoy peace of mind knowing your door is secure.
Practice turning the key from both sides. This helps avoid any future problems. Keep your keys in a safe, easy-to-find place. Regularly check the lock to ensure it works well. Simple steps lead to a safer home environment.
