Changing a three-way light switch might sound tricky, but you can do it yourself with the right steps. Imagine controlling the lights in your room from two different spots — that’s what a three-way switch does.
If your switch is old, faulty, or you just want to upgrade, knowing how to change it can save you time and money. In this guide, you’ll find simple, clear instructions that anyone can follow. By the end, you’ll feel confident handling this common home improvement task.
Ready to take control of your lighting? Let’s get started.
Tools And Materials Needed
Changing a three-way light switch requires specific tools and materials. Having the right items makes the job easier and safer. Prepare everything before starting the work. This helps avoid interruptions.
Essential Tools For Changing A Three-way Switch
Start with a screwdriver set, including flathead and Phillips types. A voltage tester is crucial to check power before touching wires. Wire strippers help remove insulation without damaging wires. Needle-nose pliers allow bending and holding wires. A flashlight or headlamp improves visibility in dark spaces.
Materials You Will Need
Get a new three-way switch that matches your old one. Use electrical tape for securing wire connections. Wire nuts are necessary to join wires safely. Have some extra electrical wire in case you need to extend connections. A switch plate cover finishes the job neatly.
Safety Gear To Protect Yourself
Wear insulated gloves to reduce electric shock risk. Safety glasses protect eyes from sparks or debris. Use a sturdy ladder if the switch is high on the wall. Keep a first aid kit nearby in case of minor injuries.

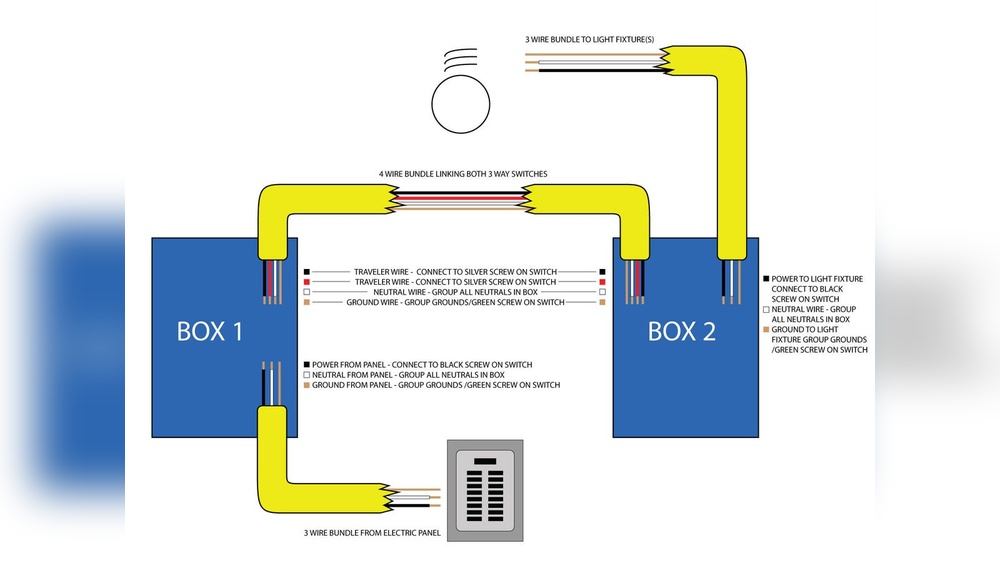

Credit: www.youtube.com
Safety Precautions
Changing a three way light switch involves working with electricity. Safety must come first. Taking the right precautions helps avoid accidents or injuries. Simple steps can keep you safe during the process.
Turn Off The Power
Always switch off the power at the circuit breaker. Do not rely on the wall switch alone. Use a voltage tester to confirm no electricity flows to the wires. Never touch wires that might be live.
Use Proper Tools And Equipment
Choose insulated tools designed for electrical work. Avoid metal tools without insulation. Wear rubber-soled shoes to reduce shock risk. Use gloves to protect your hands from sharp edges.
Work In A Dry Area
Make sure the workspace is dry. Water and electricity create a dangerous mix. Avoid standing on wet floors or carpets. Dry your hands before handling wires or tools.
Label And Organize Wires
Label wires before disconnecting them. Keep track of where each wire connects. Use tape or markers for easy identification. This helps avoid mistakes when rewiring the switch.
Do Not Work Alone
Have someone nearby in case of emergencies. They can help or call for help quickly. It is safer to have a partner during electrical work. Stay alert and communicate clearly with them.
Identifying Three Way Switch Components
Identifying the components of a three way light switch is the first step to changing it safely. Knowing each part helps avoid mistakes and ensures proper wiring. This section explains the key parts found in most three way switches.
Recognizing Common Terminals
Three way switches have three terminals for wire connections. One terminal is called the “common.” It usually looks different or is colored black or dark. The other two terminals are called “travelers.” They often have brass or lighter color screws. These terminals connect to wires that carry electricity between switches.
Finding the common terminal is important. It controls power flow and links to the light fixture or power source. The traveler terminals allow switching the light on or off from two locations. Each terminal must be connected to the correct wire for the switch to work.
Understanding Wire Colors
Wire colors help identify their purpose in the switch setup. Black wires usually carry power and connect to the common terminal. Red wires often connect to the traveler terminals. White wires are neutral and usually do not connect to the switch but to the light fixture.
Ground wires are bare copper or green and connect to the switch’s ground screw. Properly identifying wire colors reduces wiring errors and increases safety. It is important to turn off power before handling any wires.
Credit: www.reddit.com
Turning Off Power
Turning off power is the first step before changing a three-way light switch. It keeps you safe from electric shock. Always make sure the electricity is completely off.
Never start working without cutting power. It protects you and your home’s wiring. Follow simple steps to turn off power correctly.
Locate The Circuit Breaker
Find your home’s main electrical panel. It usually sits in the basement, garage, or utility room. Open the panel door to see the circuit breakers.
Identify The Correct Breaker
Look for the breaker labeled for the room or area with the switch. If no label exists, try switching off breakers one by one. Use a helper to check if the light turns off.
Turn Off The Breaker
Flip the correct breaker switch to the off position. This stops electricity from flowing to the switch. Confirm power is off before you touch any wires.
Use A Voltage Tester
Check the switch wires with a voltage tester. It shows if electricity is still present. Only start work when the tester reads zero volts.
Removing The Old Switch
Removing the old three-way light switch is the first step. This task requires care and attention. Safety is the top priority before touching any wires. Make sure the power to the switch is off at the breaker box.
Use a voltage tester to confirm no electricity is flowing. This simple check prevents shocks. Once safe, you can start removing the switch cover and switch.
Turn Off Power At The Breaker
Locate the correct breaker in your electrical panel. Switch it off to cut power to the switch. Test the switch with a voltage tester. Ensure no current is present before moving forward.
Remove The Switch Cover Plate
Use a screwdriver to take off the cover plate. This reveals the screws holding the switch. Keep the screws safe to reuse later. The cover plate should come off easily after unscrewing.
Unscrew The Old Switch
Remove the screws that hold the switch in the electrical box. Gently pull the switch out without pulling the wires. This gives you room to see the wiring clearly.
Identify And Label The Wires
Look at the wires connected to the switch. Use labels or tape to mark each wire’s position. This helps during installation of the new switch. Take a photo for extra reference if needed.
Disconnect The Wires From The Old Switch
Loosen the terminal screws or release the wires from push-in connectors. Carefully remove all wires from the old switch. Keep the wires straight and separate to avoid confusion.
Wiring The New Three Way Switch
Wiring the new three way switch is a key step in changing your light switch. You must follow the correct process to ensure safety and proper function. This section explains how to connect the ground wire, attach the common terminal, and wire the traveler terminals.
Connecting The Ground Wire
Locate the bare or green ground wire in the switch box. Attach this wire to the green ground screw on the new switch. Tighten the screw firmly to hold the wire in place. The ground wire helps prevent electrical shocks and is very important.
Attaching The Common Terminal
Identify the common terminal on the switch. It is usually a darker screw or labeled “COM.” Connect the black or marked wire to this terminal. Make sure the wire is wrapped clockwise around the screw. Tighten the screw securely for a good connection.
Wiring The Traveler Terminals
Find the two traveler terminals on the switch. These are usually brass-colored screws. Connect the two traveler wires from the other switch to these terminals. Wrap the wires around the screws clockwise and tighten them firmly. Proper traveler wiring allows the switches to work together.
Securing The Switch And Testing
Securing the switch and testing are the final steps in changing a three-way light switch. These steps ensure the switch stays in place and works correctly. Proper mounting prevents loose connections and possible hazards. Testing confirms the switch controls the light as expected.
Mounting The Switch
First, carefully push the wires back into the electrical box. Align the switch with the mounting holes. Use screws to fasten the switch tightly. Avoid overtightening to prevent damage. The switch should sit flush with the wall surface. Check that it does not move or wiggle.
Restoring Power And Testing
Turn the power back on at the circuit breaker. Test the switch by toggling it on and off. Check the other switch in the three-way setup as well. Both switches must control the light properly. If the light does not work, turn power off and recheck connections. Repeat testing until the switch works correctly.
Troubleshooting Common Issues
Troubleshooting common issues with three-way light switches helps keep your lighting working smoothly. Problems can arise from wiring mistakes or faulty switches. Knowing what to check saves time and avoids frustration.
This section covers easy ways to find and fix frequent problems. Follow these steps to get your three-way switches back on track.
Check For Loose Or Disconnected Wires
Loose wires often cause switches to stop working. Turn off the power at the breaker box. Remove the switch cover and inspect all wire connections. Make sure wires are tightly secured under screws or in wire nuts. Tighten any loose wires carefully.
Test The Switches With A Voltage Tester
A voltage tester helps identify if the switch receives power. Turn the power back on. Use the tester to check for voltage at each switch terminal. No voltage means a wiring issue or a breaker problem. Voltage present but no light means a faulty switch.
Replace A Faulty Switch
Switches can wear out over time. If testing shows power but no light, swap the switch with a new one. Turn off power first. Remove the old switch and note wire placement. Attach wires to the new switch in the same way. Turn power on and test the light.
Inspect The Light Fixture
The problem may not be the switch. Check the light bulb and socket. Replace burned-out bulbs. Clean the socket if dirty. Ensure the fixture receives power by testing with a voltage tester. Fix or replace the fixture if needed.
Verify Correct Wiring Setup
Incorrect wiring causes switches to malfunction. Review the wiring diagram for three-way switches. Check that traveler wires connect correctly between switches. Confirm the common wire is on the right terminal. Adjust wiring if it does not match the diagram.
Credit: www.hgtv.com
Frequently Asked Questions
How Do I Identify A Three Way Light Switch?
A three way switch has three terminals plus a ground screw. It controls lights from two locations. Look for two brass-colored screws and one black screw.
Can I Replace A Three Way Switch Myself?
Yes, with basic electrical knowledge and safety precautions. Always turn off power at the breaker before starting. Follow wiring diagrams carefully to avoid errors.
What Tools Do I Need To Change A Three Way Switch?
You need a screwdriver, voltage tester, wire stripper, and electrical tape. These tools ensure safe and proper installation of the switch.
How Do I Test If The Three Way Switch Works?
Turn power back on and toggle both switches. The light should turn on and off from either switch location without issues.
Conclusion
Changing a three-way light switch is easier than it seems. Follow the steps carefully and take safety first. Turn off power before starting any work. Use a tester to check wires. Connect wires to the right terminals. Double-check your connections before restoring power.
With patience and care, you can do it yourself. This saves time and money on repairs. Keep your home lighting working smoothly. Try this simple task and feel confident in your skills.
